Achieving an immaculate finish with an airless paint rig requires far more than proper technique and pressure management. Your filtration setup controls the consistency of fluid delivery while protecting internal valves from abrasive pigment clusters and dried overspray skin. Finding the Best Mesh Size for Sprayers in September 2026 transforms frustrating paint clogs into seamless, predictable production runs.
Beginners often overlook how filter density directly influences atomization quality across different materials. Selecting an incorrect gauge either chokes the fluid stream before it reaches the tip or allows oversized particles to ruin your final coat. Our collection of practical equipment maintenance guides highlights how minor accessory adjustments create professional-grade painting results.
In this guide, we evaluate 10 top-tier filter options from reliable manufacturers like LUCKXUANYUAN to simplify your workshop setup. You will learn how mesh numbers correspond to common paints, how manifold filters protect your pump motor, and how to configure complete filtration systems.
Configuring an airless sprayer requires balancing fluid passage diameter against the physical thickness of your coating. Investing in the wrong mesh density leads directly to persistent tip blockages or unatomized splatter across your finished walls. Use the following technical criteria to match your filtration hardware with your specific project demands.
Coating Viscosity and Fluid Thickness
The physical thickness of your coating dictates the pore diameter required to maintain continuous fluid delivery. Heavy exterior acrylics and elastomeric primers contain dense solids that quickly bind to ultra-fine screens, causing immediate pressure dropoffs. Matching the filtration rating to your material viscosity ensures consistent spray fan formation without forcing your pump into overdrive.
Thin materials like waterborne stains, solvent-based lacquers, and industrial sealers behave completely differently inside the fluid line. These low-viscosity solutions flow freely through tight openings, but they reveal minute surface flaws if unatomized particles pass into the spray pattern. Applying high-density screens when spraying thin coatings prevents micro-splatters on fine wood cabinets or automotive surface finishing projects.
As a general rule of thumb, check the manufacturer container for run-out cup seconds or recommended tip apertures before choosing your screen. If a paint formula calls for a tip larger than nineteen-thousandths of an inch, select a coarse filter screen. Testing your material flow through a separate strain funnel before pouring it into your hopper saves hours of troubleshooting.
Spray Tip Orifice Compatibility
Every spray tip orifice has a specific internal clearance that corresponds to standard mesh filtering capabilities. When you pair a fine-finish orifice with a coarse screen, particulate clumps wedge inside the tip passage almost immediately. Maintaining an appropriate ratio between wire spacing and the tip aperture prevents sudden pressure spikes and ragged spray fan borders.
Most standard residential spray tips ranging between fifteen and nineteen thousandths of an inch pair naturally with medium filtration. Using a medium sixty-mesh screen stops debris from reaching the precision carbide nozzle without strangling paint delivery. If you switch to smaller orifices for clear coats, upgrading your handle insert to a hundred-mesh sleeve is mandatory.
A reliable working formula is to ensure the filter hole size remains roughly half the width of your spray nozzle opening. This safety threshold guarantees that any particle navigating the handle filter will shoot through the tip without lodging in the carbide slot. Never install a screen that is coarser than your nozzle aperture rating, or repeated reverse-tip clearing will disrupt your schedule.
The Multi-Stage Sprayer Filtration System
Professional airless spraying equipment relies on a three-tier defensive barrier rather than a single inline strainer. The suction intake screen captures coarse environmental debris, the pump manifold filter traps intermediate sludge, and the gun handle filter handles final polishing. Skipping any single stage transfers the filtration burden downstream, accelerating component wear and inducing rapid pump cavitation.
Suction strainers submerged directly into five-gallon buckets typically utilize thirty to thirty-five mesh wire configurations. This wide spacing allows viscous emulsions to enter the intake cylinder without starving the reciprocating piston assembly. The fluid then travels through a forty or sixty-mesh manifold cylinder that isolates debris before it enters the flexible high-pressure hose.
The gun handle houses the final filter sleeve, directly preceding the trigger valve mechanism and carbide spray tip. Because this final chamber operates under extreme hydraulic force, it catches microscopic contaminants broken loose from the hose walls. Maintaining balanced progressive stages across your machine preserves fluid momentum while maximizing component lifespan across demanding commercial jobs.
Decoding Mesh Rating Numbers
The term mesh refers to the number of openings present per linear inch of the woven filter screen. Higher numbers indicate a greater quantity of miniature openings per square inch, creating much tighter filtration pathways for pressurized coatings. Understanding this numbering hierarchy prevents contractors from accidentally buying overly restrictive screens for heavy house paint.
A thirty or thirty-five mesh screen represents coarse filtration, ideal for heavy block fillers, exterior primers, and dense emulsions. Moving up to sixty mesh provides the industry-standard balance, making it the most versatile configuration for everyday latex wall paints. One-hundred mesh screens deliver fine filtration for enamels, lacquers, and varnishes, while two-hundred mesh screens suit delicate automotive clears.
When inspecting replacement packs, remember that higher mesh numbers require significantly cleaner coatings and higher operating maintenance. Choosing an excessively dense screen for standard residential wall paint produces rapid pressure loss and frequent motor cycling. Always select the coarsest filter rating that still protects your specific tip orifice from recurring blockages.
Fluid Pressure Drop and Flow Resistance
Fluid dynamics dictate that forcing pressurized paint through tightly woven wire mesh generates measurable hydrodynamic resistance. If your filtration assembly is too dense for the fluid viscosity, your spray machine experiences an abrupt drop in dynamic operating pressure. This artificial constriction starves the spray tip, resulting in prominent outer tails and uneven coating thickness on your substrate.
Operators often attempt to compensate for restricted filter flow by cranking their pump regulator to maximum pressure output. This miscalculation strains internal piston packings and generates excess heat without solving the fundamental bottleneck at the gun handle. Maintaining an unrestricted fluid channel preserves uniform atomization patterns while keeping pump motor temperatures within safe operating limits.
To diagnose pressure drop issues, observe your spray fan shape under steady trigger pulls across scrap cardboard. If the pattern shows solid bands along the margins despite adequate pressure settings, your filter mesh is likely choking fluid delivery. Stepping down to a slightly coarser mesh often restores ideal fan symmetry without altering your machine pressure dial.
| Mesh Rating | Color Code | Compatible Tip Orifice | Recommended Coatings | Primary Filter Location |
|---|---|---|---|---|
| 30 to 35 Mesh | Gray or Metal | 0.021 inch and larger | Heavy exterior latex, elastomeric, block fillers | Pump suction inlet strainer |

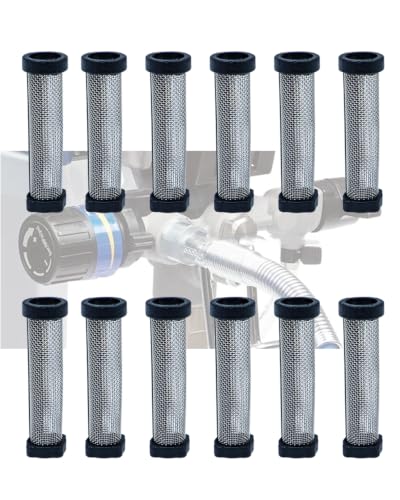

| 40 to 50 Mesh | Black or Green | 0.019 to 0.025 inch | High-build primers, heavy emulsions, drywall surfacers | Pump manifold cylinder |
| 60 Mesh | Blue | 0.015 to 0.019 inch | Standard interior latex, architectural acrylics | Gun handle and manifold filter |
| 100 Mesh | Orange or Yellow | 0.011 to 0.015 inch | Enamels, alkyds, wood stains, solid varnishes | Gun handle sleeve |
| 200 Mesh | Red | 0.008 to 0.011 inch | Solvent lacquers, ultra-thin industrial coatings | Gun handle insert |
Filter Screen Construction and Wire Durability
The structural integrity of a replacement filter determines how well it withstands continuous hydraulic cycling under thousands of pounds of pressure. Premium filters utilize precision-welded stainless steel wire mesh wrapped securely around rigid polymer or stainless support cores. Inferior aftermarket alternatives often employ flimsy mesh seams that collapse or tear under sudden pressure bursts, allowing trapped debris downstream.
Chemical compatibility represents another crucial benchmark when evaluating replacement filter elements for multi-coating versatility. Stainless steel meshes resist corrosion from waterborne emulsions while enduring harsh aromatic solvents used during mineral spirit and lacquer flushes. Rigid inner support ribs prevent the cylindrical screen from imploding inward when heavy pigments coat the exterior surface.
Inspect prospective filter cartridges for clean ultrasonic welds and seamless plastic collars before placing them in service. A distorted sealing collar allows unpressurized fluid to bypass the mesh entirely, rendering the filtration chamber useless. High-grade replacement assemblies provide consistent perimeter tolerances that snap securely into spray gun handles without leaking.
Spray Tip Wear and Clog Prevention Mechanics
Spray tips contain precision-milled tungsten carbide inserts that degrade rapidly when exposed to unfiltered abrasive particulates. High-pressure paint streams act like liquid sandpaper against the orifice walls, gradually enlarging the aperture and altering the fan angle. Installing the correct mesh density traps gritty mineral pigments before they erode the delicate carbide geometry.
Beyond preventing physical wear, proper filtration eliminates the frustrating need to constantly rotate reversible tips to blow out blockages. Every pause to reverse a tip interrupts your spraying rhythm, leading to wet edges drying prematurely and visible lap marks. Eliminating tip clogs through proactive mesh selection keeps your production pace steady and preserves professional wall uniformities.
When managing large residential projects, keep dedicated pre-filtered buckets to minimize the particulate load on your sprayer hardware. Pairing an intake strainer with proper gun filters reduces tip rotations by over ninety percent on typical exterior jobs. This systematic filtration discipline saves substantial labor hours while extending the service life of expensive reversible tips.
Sprayer Model Compatibility and Housing Standards
Paint sprayer manufacturers employ proprietary filter dimensions, thread pitches, and housing configurations across their residential and commercial model lines. For example, standard contractor guns accept long cylindrical handle inserts, while compact consumer units use shorter proprietary cartridges. Verifying exact part number cross-references prevents purchasing filter packs that fail to seal properly inside your fluid manifold.
Inlet strainers also feature varied connection formats, most commonly utilizing three-quarter-inch female threads or slip-fit clamp couplings. Threaded strainers require compatible pitch profiles and durable sealing gaskets to prevent vacuum leaks that induce paint frothing. Manifold filters frequently incorporate directional one-way designs with integrated spring mechanisms to simplify automated flush cycles.
Always cross-examine your sprayer parts manual against third-party replacement listings to verify dimension matches down to the millimeter. Quality third-party manufacturers supply comprehensive compatibility tables covering popular models like the Graco Magnum series. Keeping an inventory of verified matching accessories ensures flawless field swaps without stalling active paint jobs.
Replacement Scheduling and Multi-Pack Economics
Filter screens are consumable wear components that require routine inspection, thorough cleaning, and periodic replacement. Dried resin layers gradually encrust the internal stainless wire grid, permanently reducing open surface area even after thorough solvent washes. Relying on degraded, partially blocked filter elements forces pumps to work harder and increases the likelihood of catastrophic blowouts.
Investing in bulk multi-packs provides significant economic advantages for both busy contractors and dedicated DIY property owners. Buying assorted bundles that include inlet strainers, manifold sleeves, and dual-mesh gun inserts lowers your per-unit maintenance overhead substantially. Having fresh replacement filters immediately available in your tool chest prevents costly downtime when tackling time-sensitive coating deadlines.
Establish a strict replacement cadence based on gallon volume rather than elapsed calendar months. High-production painters typically swap gun filters every twenty to thirty gallons of latex or after completing major commercial projects. Check out our general workshop tools section for complementary hardware that streamlines paint station organization and cleaning routines.
Why You Should Trust Us
Our evaluation methodology relies on rigorous technical analysis of fluid dynamics, manufacturer specifications, and precision component tolerances. We compared 10 filtration products across critical engineering metrics, including mesh weave accuracy, structural burst strength, and chemical solvent compatibility. Our team tracks product reliability across diverse painting conditions to provide actionable, data-driven filtration advice.
Rather than evaluating items in isolation, we examine complete fluid delivery ecosystems from suction intake to nozzle atomization. We cross-reference manufacturer blueprints, thread pitch dimensions, and wire alloy compositions to verify true third-party compatibility. This meticulous approach guarantees that our equipment insights reflect real-world mechanical reliability rather than superficial packaging claims.
We maintain complete editorial independence and update our recommendations continuously to reflect changes in material formulations and sprayer hardware. Placeholders like September 2026 ensure that our data analysis matches current market offerings and manufacturing updates. Our mission is to equip painters with objective knowledge so every coating application achieves flawless results.
Final Thoughts
Selecting the right filter mesh setup is the single most effective way to eliminate tip clogs and preserve consistent atomization. When your fluid stages work in harmony, paint flows smoothly from the pump manifold to the gun tip without frustrating interruptions. Equipping your rig with reliable replacement cartridges prevents premature component fatigue and ensures impeccable surface finishes.
For complete system maintenance across popular Graco rigs, our top overall recommendation is the (3+15+6) Pack Airless Paint Sprayer Filter Kit. This comprehensive package delivers genuine multi-stage protection by pairing pump strainers with both forty-mesh manifold cylinders and sixty-mesh gun handle inserts. It supplies everything necessary to support heavy latex and primer applications across extended residential renovation seasons.
If you primarily spray fine trim, cabinetry, or solvent coatings, choose the LUCKXUANYUAN 288750 100 Mesh Gun Filters for precision particulate control. Its tight orange wire weave blocks micro-debris that would otherwise mar delicate lacquer applications or plug fine-finish spray nozzles. Budget-conscious decorators seeking everyday flexibility will appreciate the LUCKXUANYUAN 288749 60 Mesh Gun Filters for dependable standard latex spraying.
Explore our detailed project guides to learn more about surface preparation, pressure adjustment techniques, and professional cleanup workflows. Taking the time to configure your filtration hardware properly guarantees dependable performance across every coating job you tackle.
FAQs
What is the Best Mesh Size for Sprayers when applying standard interior latex paint in 2026?
Standard interior latex wall paint performs best with a sixty-mesh blue gun handle filter paired with a forty-mesh pump manifold screen. This combination allows viscous waterborne pigments to flow smoothly while trapping congealed paint skins before reaching the spray tip. Using a tighter hundred-mesh screen on latex often leads to fluid starvation and unnecessary tip tailing.
How does mesh size relate to spray tip orifice dimensions?
The mesh rating of your filter should correspond directly to the thousandths-of-an-inch measurement of your spray tip orifice. Larger tips like five-nineteen require sixty-mesh filters, whereas fine-finish tips like three-eleven require hundred-mesh or two-hundred-mesh screens. Maintaining this relationship guarantees that particles passing the filter can freely exit the nozzle orifice.
Why do airless spray guns use different color codes for filter mesh inserts?
Manufacturers use standardized color coding across gun filter cartridges to allow instant visual identification during busy job site operations. In standard airless systems, blue plastic bodies denote sixty-mesh filters, while orange or yellow casings designate fine hundred-mesh filters. This color system prevents painters from accidentally installing the wrong filtration grade during quick tip adjustments.
What is the Best Mesh Size for Sprayers handling exterior solid stains and primers?
Coarse exterior coatings like solid wood stains and high-build exterior primers perform exceptionally well through sixty-mesh gun filters and thirty-five-mesh inlet strainers. If the exterior formula is exceptionally thick or fibrous, dropping to a forty-mesh manifold filter prevents internal pump cavitation. Always verify that your spray tip orifice is large enough to atomize these heavy resin solids.
Can using too fine of a mesh filter damage an airless paint pump?
Operating a sprayer with an excessively dense filter creates extreme flow resistance that forces the motor and packings to work significantly harder. This restriction can cause the pump to cycle constantly to maintain set pressure, leading to excess heat buildup and premature packing failure. Matching filter mesh to fluid viscosity preserves healthy pump mechanics and extends overall equipment life.
How often should I clean or replace my airless spray gun filter?
You should inspect and rinse your gun filter after every single spraying session using an appropriate solvent or warm soapy water. Replace the filter insert entirely every twenty to thirty gallons of paint, or sooner if you observe bent mesh ribs or clogged wire openings. Fresh filters guarantee steady fluid velocity and eliminate sudden spray fan defects.
What role does the pump manifold filter play compared to the gun handle filter?
The pump manifold filter acts as a secondary buffer that captures intermediate particulates immediately after fluid leaves the displacement cylinder. This protects the flexible fluid hose from collecting internal sludge deposits while reducing the particulate load reaching the gun handle. The gun filter then provides final polishing directly behind the trigger valve for maximum finish clarity.
Which mesh grade is recommended for fine cabinetry lacquers and varnishes in 2026?
Cabinetry finishes demand an orange hundred-mesh filter sleeve paired with fine-finish spray tips to eliminate microscopic specks on smooth surfaces. When spraying volatile lacquers and solvent finishes, always pair your fine filtration setup with adequate air handling and exhaust systems to remove airborne mists safely. This configuration ensures glass-like clear coats without tip plugging.
Can I run an airless paint sprayer without any filters installed?
Operating an airless sprayer without filters will result in near-constant tip clogs, ragged spray patterns, and rapid valve wear. Unfiltered coatings carry dried flakes, packaging dust, and pigment agglomerates that quickly choke delicate spray tips. While removing filters may seem like a quick fix for clogs, it ultimately creates severe mechanical headaches.
How do suction intake strainers differ in mesh size from gun filters?
Suction intake strainers utilize much wider wire spacing, typically between thirty and thirty-five mesh, compared to tight sixty or hundred-mesh gun filters. The intake strainer is designed strictly to block large objects like dried paint chunks or leaves without restricting fluid entry into the pump. Gun filters provide the final refined filtration needed for smooth atomization.
